Elbows

Product Description

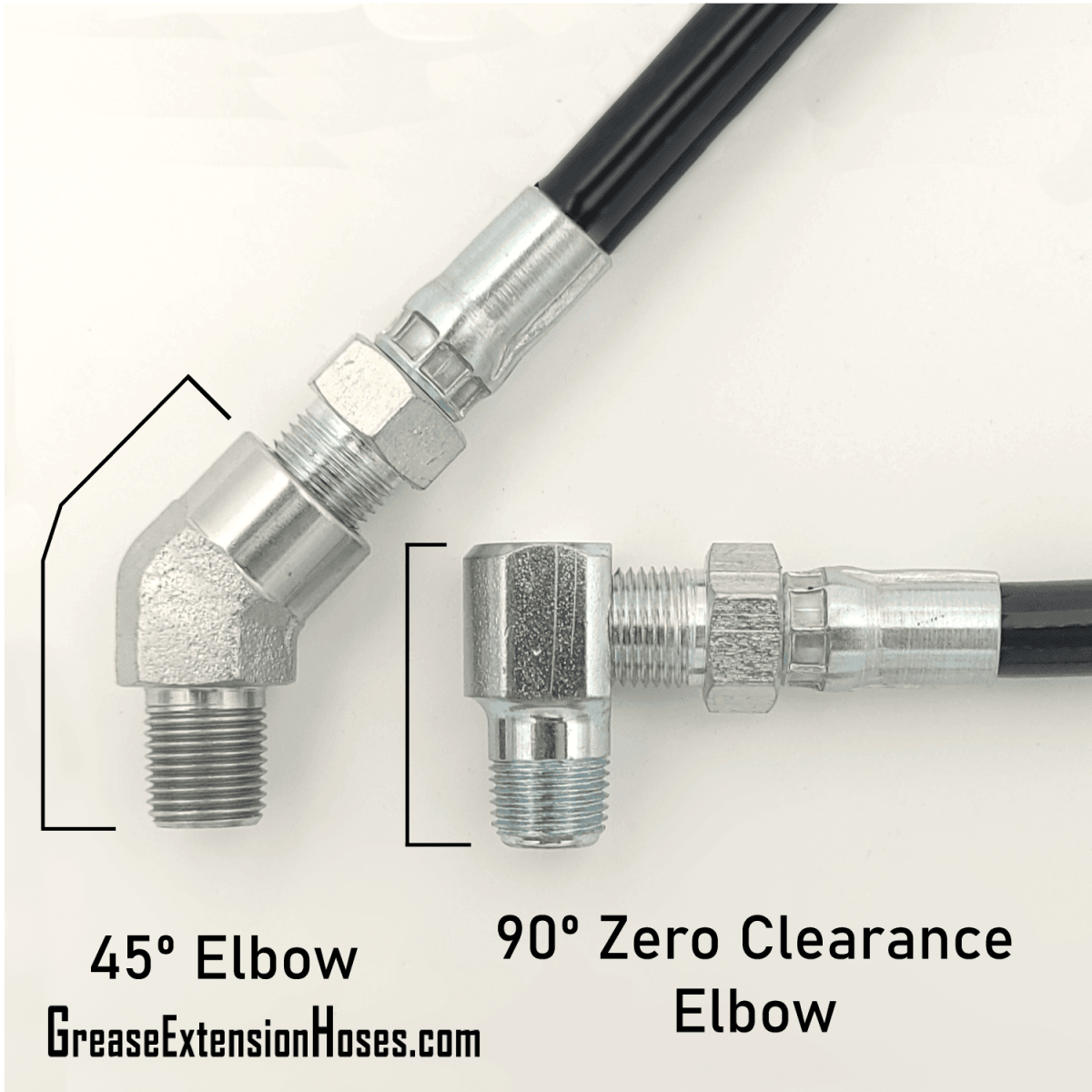

Available in both 45º and in a 90º zero clearance configuration.

1/8″NPT female x 1/8″NPT male. 1/8″NPT male end will fit many grease ports threads as-is. Other grease port threads will require a thread adapter.

The 1/8″ female end accepts our grease fitting relocation hoses. Allows you to direct hose toward a specific routing path and solves problems with limited head space above the grease port.

The 90º zero clearance elbow can be installed in many locations where other elbows will not fit. Typical elbows have a male and female leg that extends some distance from the center of the elbow. This elbow does not have an extended female leg. This reduces the fitting diameter to only 9/16" allowing it to be threaded into grease ports with limited clearance.

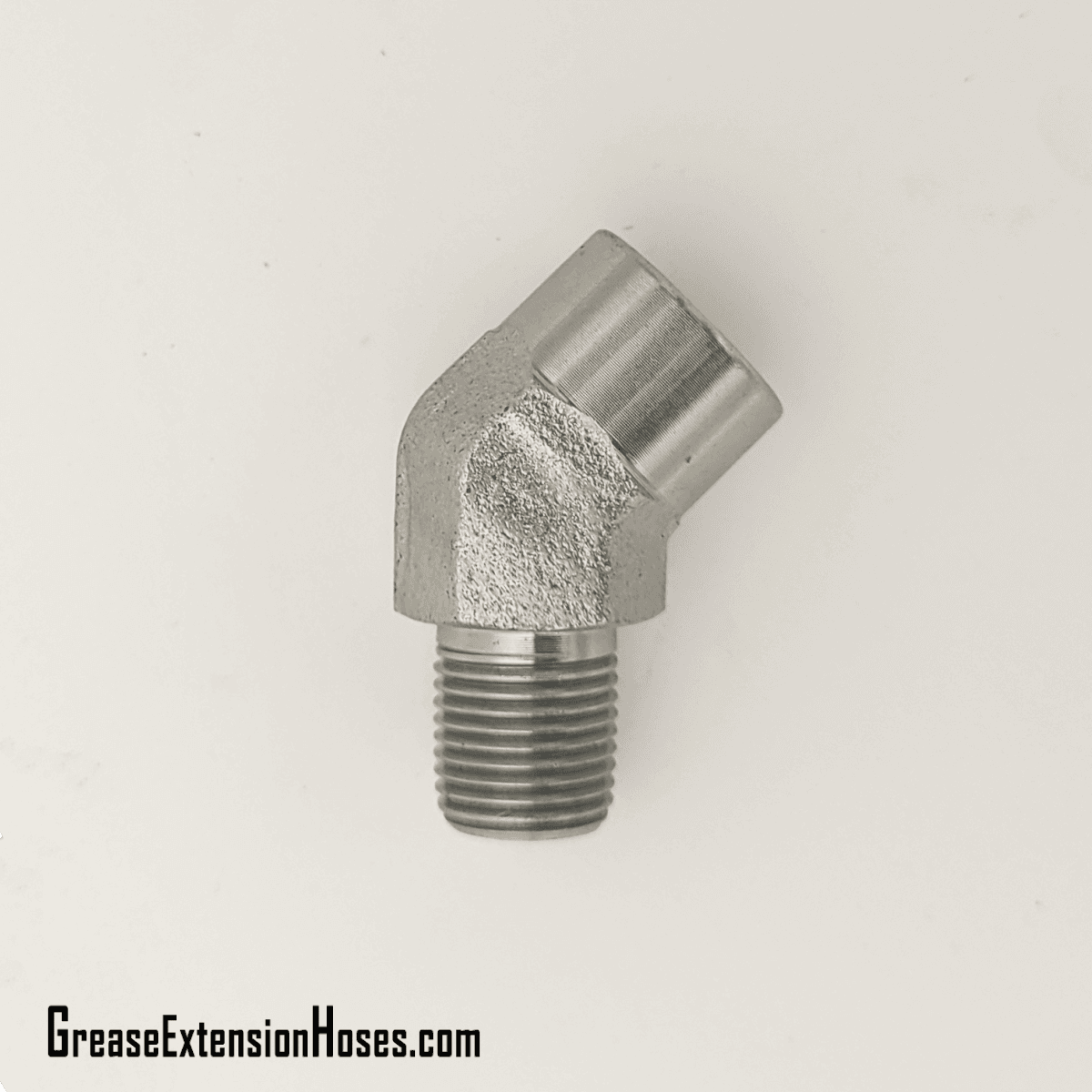

Specifications 45º Elbow

• 1/8″ NPTM x 1/8″ NPTF. Zinc plated steel.
• Length including thread: 1.30"
• Pressure rating: 5,000 psi

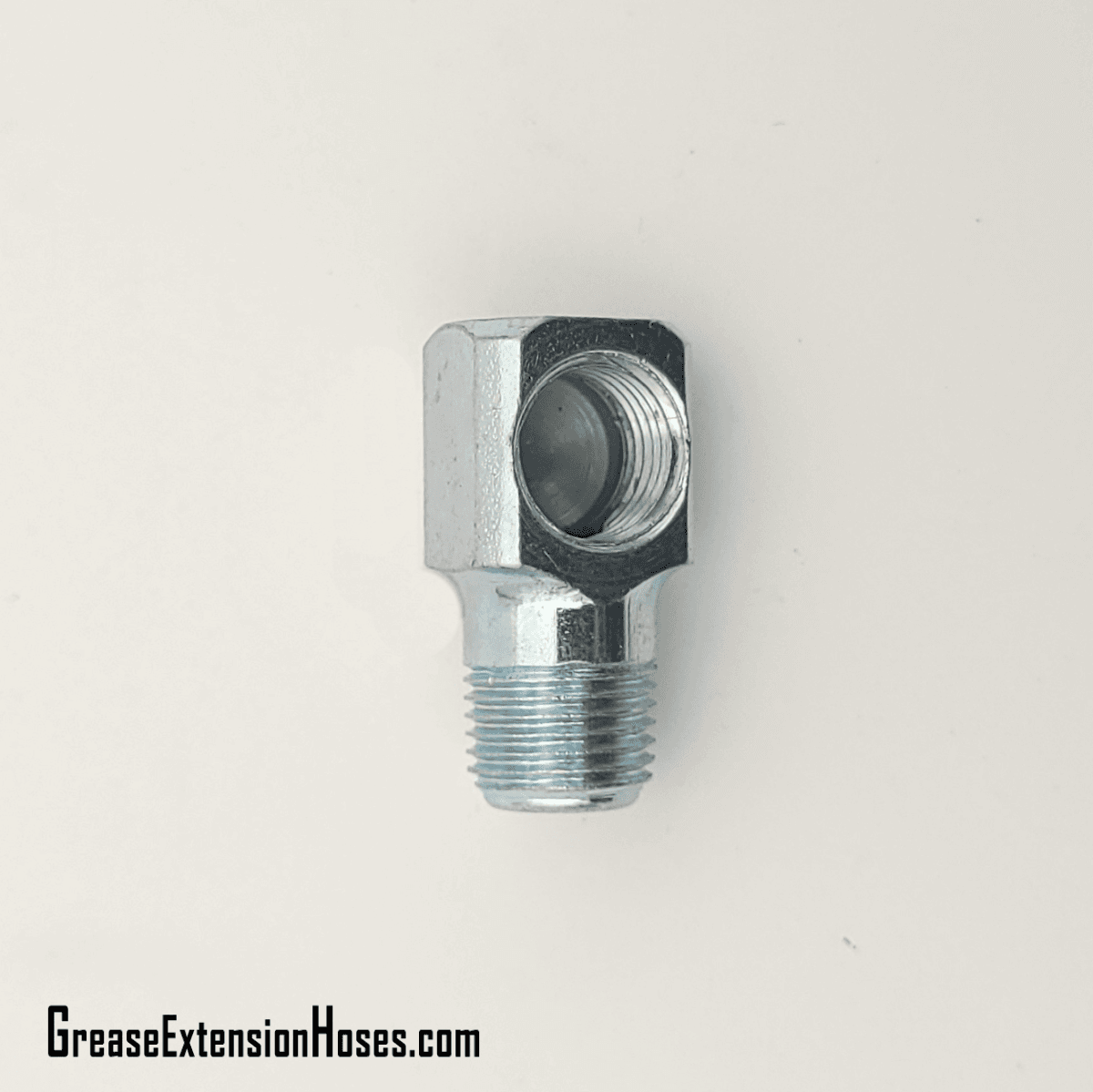

Specifications 90º Zero Clearance Elbow

• 1/8″ NPTM x 1/8″ NPTF. Zinc plated steel.
• Diameter: 0.48"
• Length including thread: 0.92"
• Pressure rating: 5000 psi
